6005 Dial Type Thermometer

Product Code: 6005

Model Number: 6005 / A / H / HX

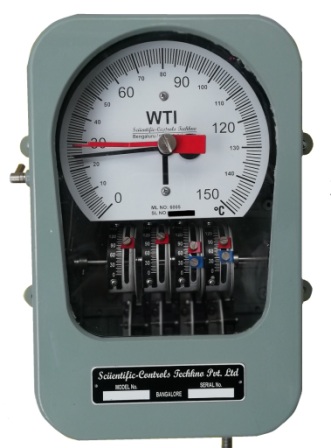

Description : 6005 Model is suitable for highly precised Temperature measurement and controlling application like Transformer, Motor and Industrial thermal process. Innovative design made self powered instrument so that doesn't required external power source for its operation. Fully sealed liquid in metal expansion served free from Trimming or other periodic adjustments at site. Accurate temperature measurement made even with variation in ambient temperature. Large dial with pointer enabled to read the temperature form longer distance. Also facilitate Maximum reading pointer which can be resettable. Sensing probe and capillary arrangement makes indicator to keep different location from temperature sensing point (up to 25 meters). User application can be managed using micro switches provided with adjustable set points. Temperature Hot spot measurement has been simulated inside the instrument using CT current (in case of WTI). SCADA interface and remote monitor is made easy with hybrid models. Instrument build with Aluminum pressure die cast enclosure with suitable IP rating for outdoor application.


Temperature Measuring Range
: Any range B/W -20ºC & 160ºC (Standard 0 ºC to 150 ºC)

Dial Size
: Round shaped 150mm (6 inches)

Dial angular Sweep
: Angle 270º

Dial Graduation
: 1ºC

Accuracy Class
: ±1 5% of FSD

CT Current
: 1A to 5A for Temperature Hot Spot simulation in case of WTI

Max. No. of Switches
: 5 Switches without Potentiometer, 4 Switches with Potentiometer

Switching Range
: 15% - 85% of Measuring range

Switch Differential
: S1 & S2: 3°C to 9°C Fixed, S3 to S5: 8°C to 40°C Adjustable

Switching Accuracy
: ±2 5°C of Set Value

Contact Rating for Standard Micro switch
: 15A @ 250V AC or 0 5A @ 250V DC

Contact Rating for MBO Micro switch
: 3A @ 250V AC/DC

Remote Repeater for Suffix 'P'
: Potentiometer Output

Remote Repeater for Suffix 'H'
: 2-wire Transmitter Output

Remote Repeater for Suffix 'HX'
: RTD Output

Capillary Length
: Up to 25 Meters

Switch Test Facility
: Provided using switch test knob

Electrical Connection Terminals
: Press Fit type, suitable to 2 5sq mm cable

Cable connection entry point
: 3Nos M20 Threaded holes provided at Bottom

High Voltage Test
: 2 5 KV AC, 50Hz/60Hz for 1 minute, B/W all terminals & body

Degree of Protection
: IP – 55 (IEC - 60529)

Sensor Pocket
: Optional
