6031 Dial Type Thermometer


Product Code: 6031

Model Number: 6031 / HX

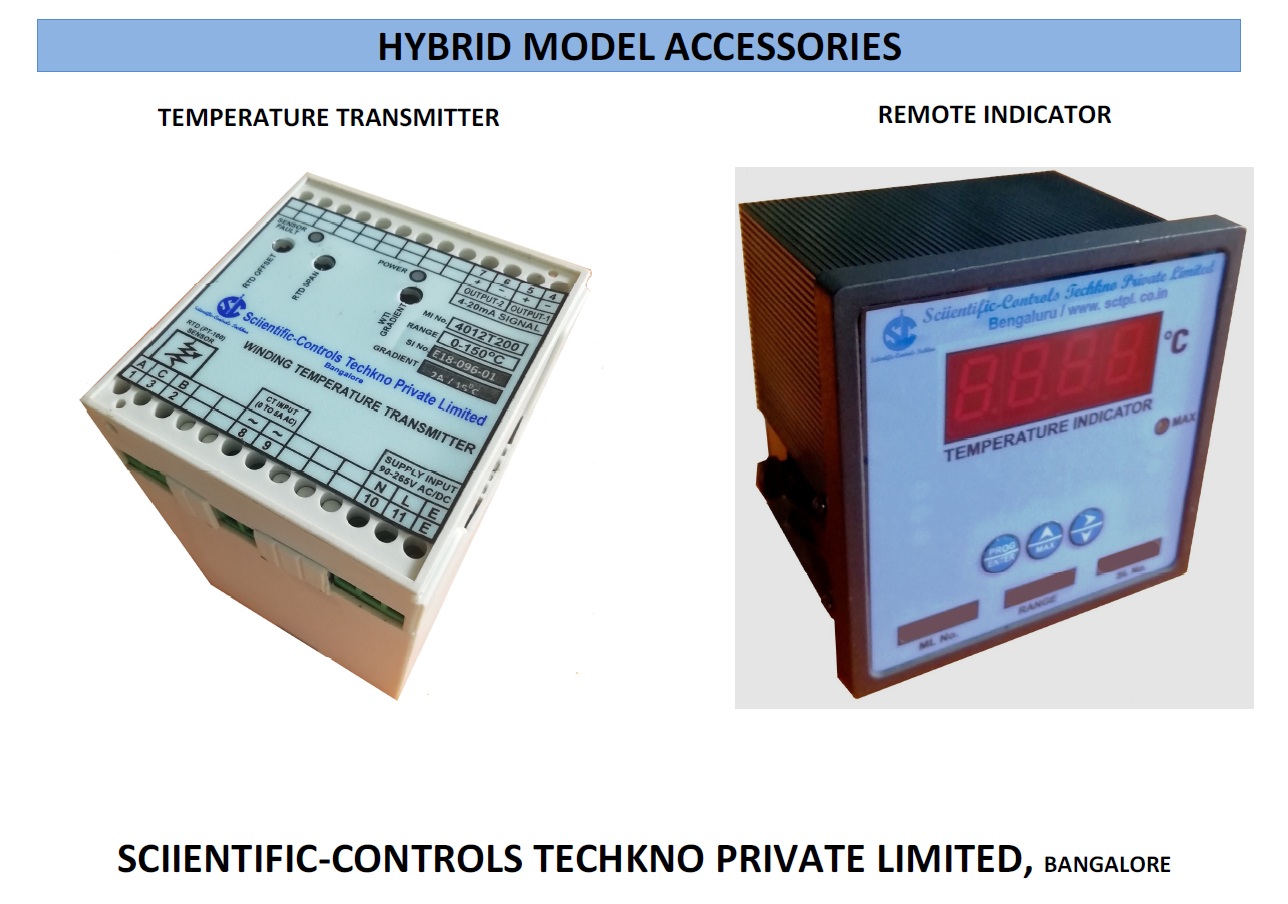

Description : 6031 Model is suitable for highly precised Temperature measurement and controlling application like Transformer, Motor and Industrial thermal process. Innovative design made self powered instrument so that doesn't required external power source for its operation. Fully sealed liquid in metal expansion served free from Trimming or other periodic adjustments at site. Accurate temperature measurement made even with variation in ambient temperature. Large dial with pointer enabled to read the temperature form longer distance. Also facilitate Maximum reading pointer which can be resettable. Sensing probe and capillary arrangement makes indicator to keep different location from temperature sensing point (up to 15 meters). User application can be managed using micro switches provided with adjustable set points. Temperature Hot spot measurement has been simulated inside the instrument using CT current (in case of WTI). SCADA interface and remote monitor is made easy with hybrid models. Instrument build with Aluminum pressure die cast enclosure with suitable IP rating for outdoor application.


Specifications


Dial Size
: Segmented 115mm

Dial angular Sweep
: Angle 60º

Dial Graduation
: 2ºC

Accuracy Class
: ±1 5% of FSD

CT Current
: Up to 5A for Temperature Hot Spot simulation in case of WTI

Max. No. of Switches
: 2 Switches

Switching Range
: 15% - 85% of Measuring range

Switch Differential
: 1°C to 5°C (3°C±2°C) Fixed

Switching Accuracy
: ±2 5°C of Set Value

Contact Rating
: 5A @ 250V AC or 0 5A @ 220V DC

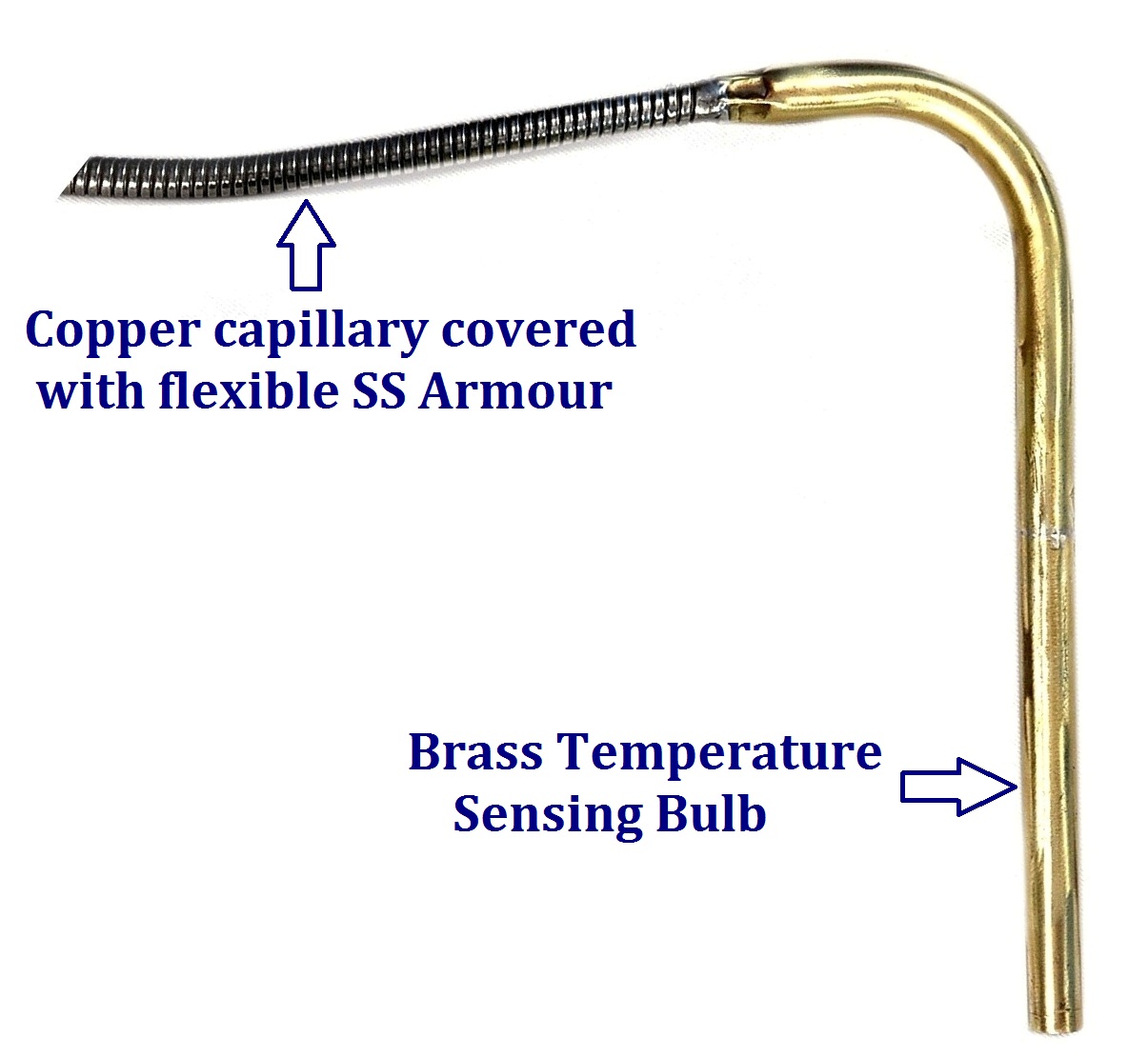

Capillary Length
: Up to 15 Meters

Electrical Connection
: 1Sq mm Copper Cable with 1mtr Length

Degree of Protection
: IP – 55 (IEC - 60529)

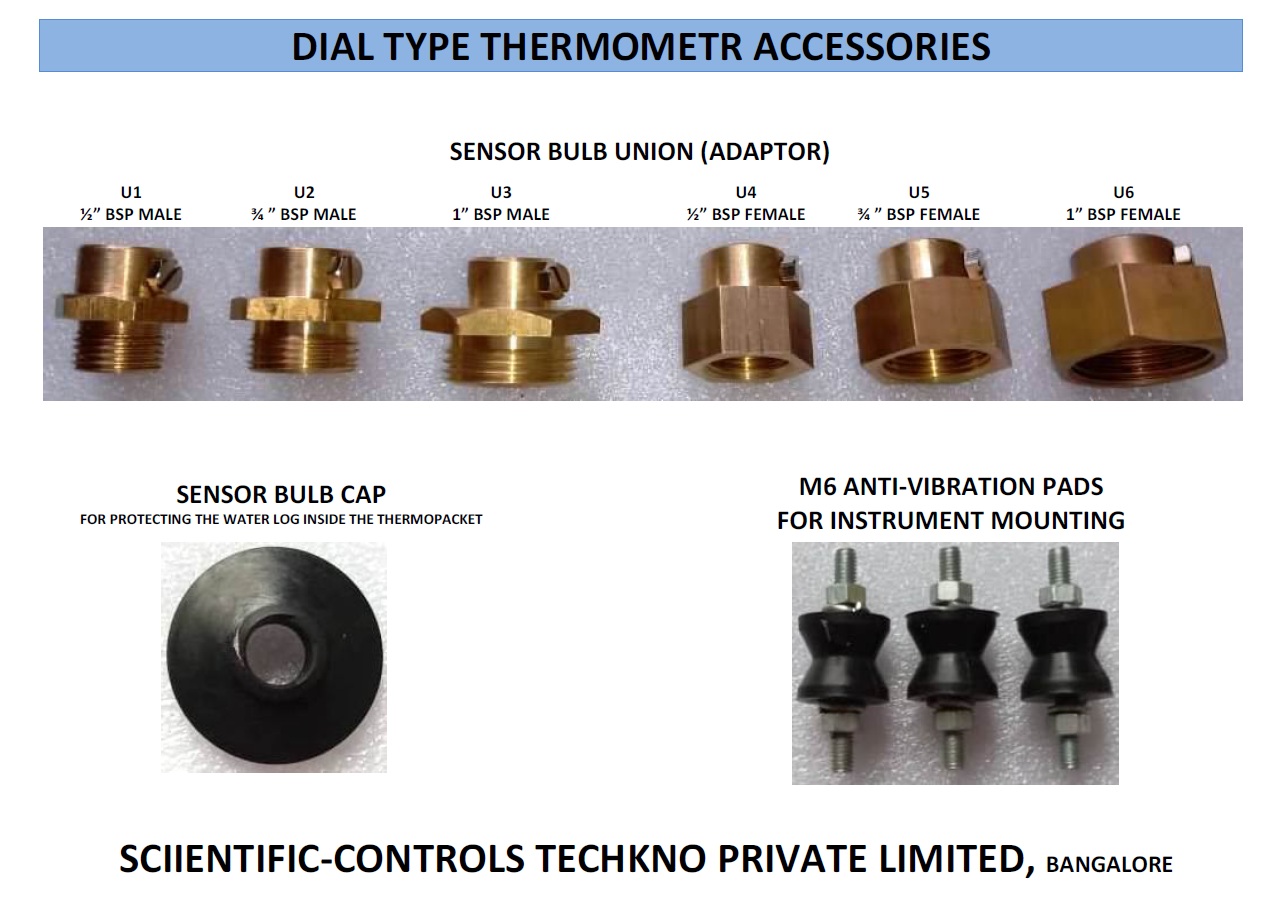

Sensor Pocket
: Optional
